Fuel Stations

Harlequin Fuel Stations are easy to use and easy to install. Fuel Stations offer safe, secure and convenient diesel refuelling, whilst simultaneously ensuring compliance with all relevant statutory requirements.

Fuel Stations combine the acknowledged environmental benefits of integral bunding with the very latest fuel storage and dispensing technology. Bristling with added value features as standard, Harlequin Fuel Stations are ideal for the storage of diesel fuel at installations serving plant, vehicles and equipment powered by current generation, high power diesel engines. Fuel Stations can also be used for the storage of B5 Biodiesel i.e. fuel with a bio-element not greater than 5%.

All Fuel Stations are supplied with:

4m fuel resistant delivery hose, automatic trigger nozzle, choice of 12v, 24v, 110v or 240v pump, bulk head light (240v model only), electronic gauge, 10 micron filter, failsafe overfill prevention probe and dip stick all safely and securely contained within a lockable bunded area. All models above 1400 litres also have a mechanical flow meter fitted as standard.

Additionally at extra cost all 5000 and 10000 litre Fuel Stations can be supplied complete with factory fitted 80 user fuel management system.

The Harlequin Fuel Station range is listed below:

harlequin_1400fs

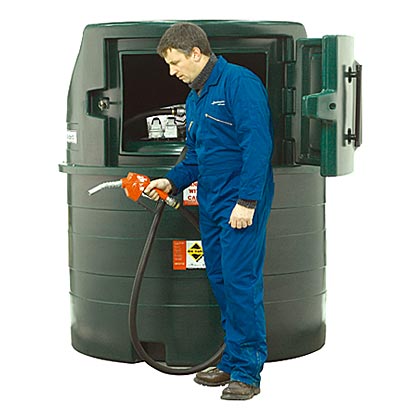

Harlequin 1400FS

Diameter: 1570mm
Height: 1850mm
Weight: 147kg
Capacity: 1413 Litres
harlequin_2500fs

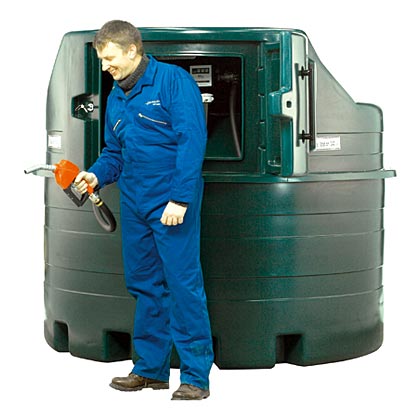

Harlequin 2500FS

Diameter: 2090mm
Height: 1800mm
Weight: 200kg
Capacity: 2450 Litres
harlequin_fs5000

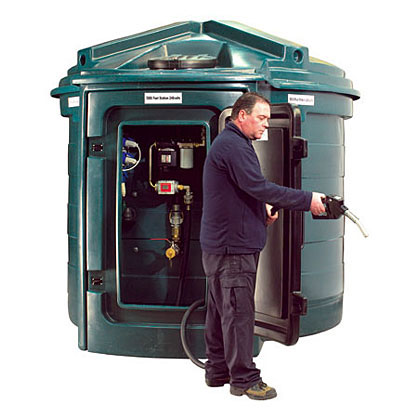

Harlequin 5000FS

Length: 2950mm
Width: 2520mm
Height: 2500mm
Weight: 380kg
Capacity: 5042 Litres
harlequin_10000fs

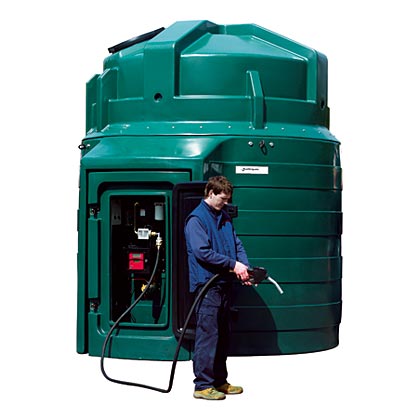

Harlequin 10000FS

Length: 3250mm
Width: 2800mm
Height: 3350mm
Weight: 725kg
Capacity: 9595 Litres
