Single skin tanks

Harlequin Single Skin Tanks

Bottom outlet single skin tanks supplied with or without electronic gauge and tank fitting kit.

Harlequin single skin tanks do not incorporate any form of secondary containment. In the event of a spillage, a pollution incident will result. Single skin tanks are unsuitable for installation at agricultural, industrial and institutional installations.

The full range of Harlequin Single Skin Tanks is listed below:

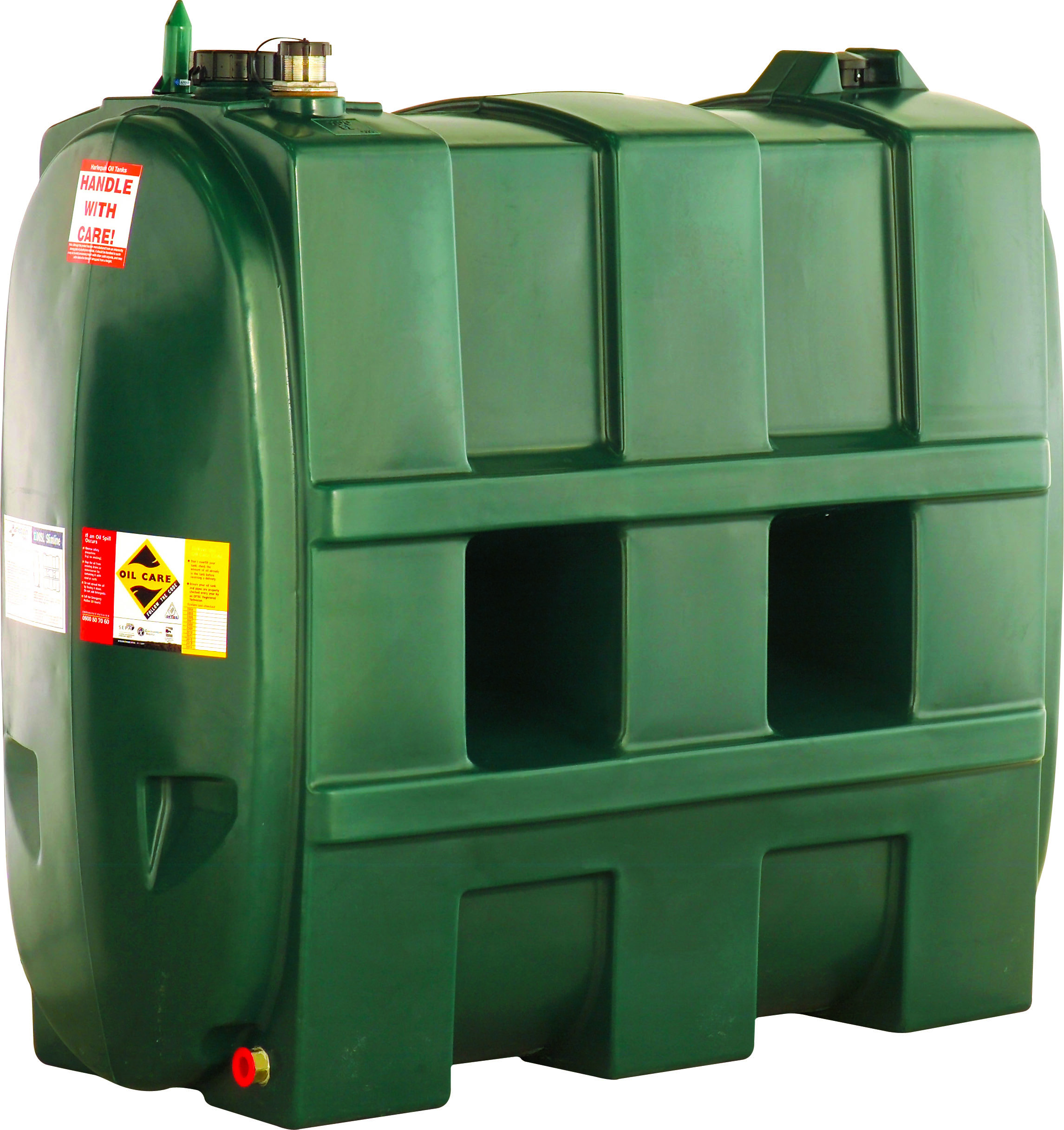

harlequin_1100sla

Harlequin 1100SL

Length: 1650mm
Width: 690mm
Height: 1420mm
Weight: 60kg
Capacity: 1040 Litres
harlequin_1200lpa

Harlequin 1200LP

Length: 1740mm
Width: 1320mm
Height: 825mm
Weight: 50kg
Capacity: 1251 Litres

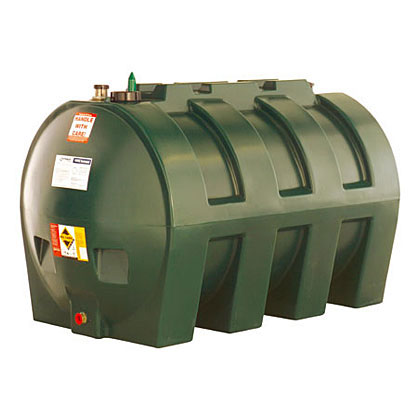

harlequin_1400hza_0

Harlequin 1400HZ

Length: 1805mm
Width: 1095mm
Height: 1135mm
Weight: 55kg
Capacity: 1380 Litres
harlequin_2100hza

Harlequin 2100HZ

Length: 2140mm
Width: 1240mm
Height: 1270mm
Weight: 68kg
Capacity: 1994 Litres
harlequin_2500hza

Harlequin 2500HZ

Length: 2180mm
Width: 1385mm
Height: 1410mm
Weight: 90kg
Capacity: 2497 Litres

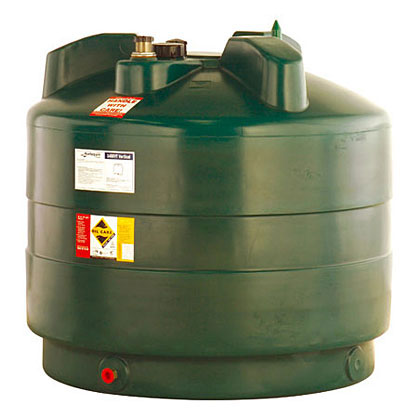

harlequin_1450vta

Harlequin 1450VT

Diameter: 1360mm
Height: 1260mm
Weight: 45kg
Capacity: 1406 Litres
harlequin_2500vta

Harlequin 2500VT

Diameter: 1700mm
Height: 1370mm
Weight: 65kg
Capacity: 2450 Litres
